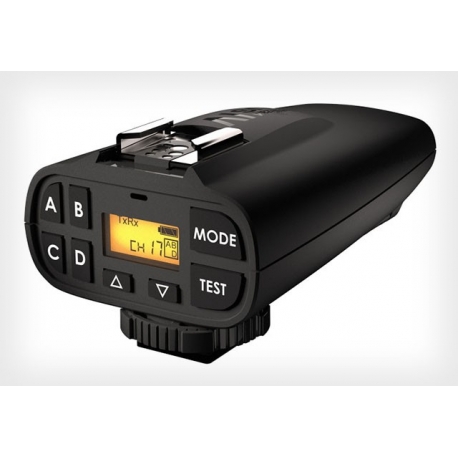

POCKETWIZARD Plus IV Transceiver

Reference: PlusIV

Condition: New product

Availability: This product will be available later

You now have the best of both worlds in one easy-to-use, reliable wireless trigger.

The Plus IV Auto-Sensing Transceiver allows photographers the benefit of on-camera TTL flash combined with remote manual flash.

Whether you shoot portraits, weddings or sports, having the ability to combine on-camera TTL flash with remote manual flash provides you with a huge competitive edge.

More details

Send to a friend
Send to a friend

POCKETWIZARD Plus IV Transceiver
You now have the best of both worlds in one easy-to-use, reliable wireless trigger.

The Plus IV Auto-Sensing Transceiver allows photographers the benefit of on-camera TTL flash combined with remote manual flash.

Whether you shoot portraits, weddings or sports, having the ability to combine on-camera TTL flash with remote manual flash provides you with a huge competitive edge.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Share on Facebook!
Print

More Info

Frequency:	FCC/IC model: 344.04 - 354.00 MHz North America CE model: 433.62 - 434.22 MHz EU/Asia/Other
Channels:	32 channels 1-16 Standard Channels 17 - 32 selective Quad-Zone Triggering channels Reverse compatible with all PocketWizard radios using Standard or Quad-Zone Triggering channels
Zones:	A - B - C - D Compatible with other PocketWizard radios with Quad-Zone Triggering channels
Antenna:	Precision tuned internal coil
Display:	Backlit 2.5cm (1.0") liquid crystal display (LCD)
Range:	Comparable to other PocketWizard radios (Actual range is dependent on multiple factors including equipment, mode, environment, positioning, orientation and interference)
Sync Speed:	Up to 1/250 for focal plane shutters Up to 1/500 for leaf shutters
Triggering Speed:	Up to 14.5 frames per second (FPS)
Contact Time:	62 milliseconds in normal operation 2 milliseconds in High Speed Receive (HSR) Mode
Status Indicator:	LED: Green, Amber, Red status indications
Transmit Output Power:	Less than 1 milliwatt (0.001 watt)
Power:	Two (2) AA (IEC:LR6) alkaline recommended NiMH, NiCAD, NiZn, Lithium acceptable (these chemistries may not report battery life accurately) USB (optional AC adapter PW-AC-USB available)
Battery Life:	Approximately 50 hours (with alkaline batteries)
Max Port Sync Voltage:	Camera / Flash Port: 300 Volts Hot Shoe (off camera): 300 Volts Hot Shoe (on camera): When using a 3rd party flash on camera, verify camera and flash specifications for voltage compatibility. On camera speedlights are directly connected to the camera’s hot shoe electrically.
Mac Current Handling:	Camera / Flash Port: 1.0 A peak, 0.2 A (1/5 Amp or 200 milliamp) continuous current limited
Voltage Present:	3 volts, safe for use with all digital and film cameras
USB:	USB 2.0 Mini-B Connector
Housing:	High impact plastic with captive battery door
Weight:	130 grams (4.7 ounces) with batteries installed
Dimensions:	Height: 4.5cm 1.8") Width: 5.9cm (2.3") Depth: 10.4cm (4.1")
Operating Temperature:	Above -15 degrees C (5 degrees F) and below 50 decrees C (120 degrees F)
Storage Temperature:	Above -30 degrees C (-22 degrees F) and below 85 degrees C (185 degrees F) (without batteries)
Input/Output:	3.5mm (1/8") stereo miniphone jack, hot shoe
Mounting:	Metal foot, 1/4-20 threaded insert
In the Box:	Quick Guide Operation reference sticker
RoHS Compliant:	Yes
Optional Accessories:	Isolation bar, trigger buttons, camera motor drive cables, PC cables and adapters, flash sync cables and protective case
